CLIENT: İzmir Metropolitan Municipality
CATEGORY: Urban Design / Public Space / Waterfront / Park / Landscape / Structure / Pavilion / Viewing Deck
STATUS: Commission / Built
AREA (OUTDOORS): 20.830 sqm
TIMETABLE:
Design: January 2016
Construction: September 2017 - May 2019
Opening: May 2019
DESIGN OFFICE/S
Studio Evren Başbuğ Architects
CREDITS:
Principal Designer:
Evren Başbuğ (Studio Evren Başbuğ Architects)
Originators:
Aziz Kocaoğlu (Mayor of İzmir)
Prof. İlhan Tekeli (‘İzmirSea’ Project Initiator, Consultant of Mayor)
Hülya Arkon (Architect, Director / İzmir Metropolitan Municipality, Future Projects Department)
'Karşıkıyı' Concept:
Mehmet V. Kütükçüoğlu (Lead Architect, Segment Coordinator / TEGET)
Evren Başbuğ (Lead Architect / Studio Evren Başbuğ Architects)
'Karşıkıyı' Concept Development Group:
Evren Başbuğ (Lead Architect / Studio Evren Başbuğ Architects)
Umut Başbuğ (Architect / Studio Evren Başbuğ Architects)
Hüseyin Komşuoğlu (Architect / Studio Evren Başbuğ Architects)
Can Özcan (Architect / Studio Evren Başbuğ Architects)
Oğuzhan Zeytinoğlu (Architect / Studio Evren Başbuğ Architects)
Can Kaya (Architect / Kıyıda Architects)
Tuba Çakıroğlu (Architect / Kıyıda Architects)
Erdem Yıldırım (Architect)
Meriç Kara (Designer / Meriç Kara Design)
Ebru Bingöl (Landscape Architect)
Korhan Şişman (Interior Architect, Lighting Expert / Planlux)
'Karşıkıyı' Design Group:
İpek Baklacı (Architect / Studio Evren Başbuğ Architects)
Elif Ayalp (Lighting Expert / Planlux)
Hande Ciğerli (Architect / TEGET)
Caner Bilgin (Architect / TEGET)
Seden Cinasal Avcı (Architect / SCRA Architects)
Ramazan Avcı (Architect / SCRA Architects)
Özlem Arvas (Architect / TH&İDİL Architects)
Düşra Korkmaz (Architect / TH&İDİL Architects)
Nedim Can Karyaldız (Undergraduate Student)
Sinan Demirel (Undergraduate Student)
İklim Topaloğlu (Undergraduate Student)
Beyza Karasu (Undergraduate Student)
Sümeyye Komşuoğlu (Undergraduate Student)
'Karşıkıyı' Technical Consultants:
Cemal Çoşak (Civil Engineer / Methal Engineers)
Mustafa Şahin (Civil Engineer / Methal Engineers)
A. Levent Ünal (Electrical Engineer / Levay Energy Engineers)
Mustafa Boz (Electrical Engineer / Levay Energy Engineers)
Bülent Örün (Mechanical Engineer / Egetek Engineers)
Önder Demirdöven (Mechanical Engineer / Egetek Engineers)
'Karşıkıyı' Consultants:
A. Tamer Başbuğ (Architect / TH&İDİL Architects)
Ersin Pöğün (Architect / Pöğün Architects)
Vedat Tokyay (Architect / Oran Architects)
Yusuf Okçuoğlu (Urban Planner, Transportation Expert)
Assoc. Prof. Güven İncirlioğlu (Architect, Artist)
Özcan Kaygısız (Architect)
Dilşad Kurtoğlu (Architect)
Ömer Ünal (Interior Architect)
Pavilion by the Sea Architectural Concept:
Evren Başbuğ (Lead Architect, Principal Designer / Studio Evren Başbuğ Architects)
Pavilion by the Sea Architectural Design Group:
Can Özcan (Architect / Studio Evren Başbuğ Architects)
Oğuzhan Zeytinoğlu (Architect / Studio Evren Başbuğ Architects)
Özlem Arvas (Architect / TH&İDİL Architects)
Pavilion by the Sea Engineering & Consultants Group:
Cemal Coşak (Civil Engineer, Hydraulic Expert / Methal Engineers)
Mustafa Şahin (Civil Engineer / Methal Engineers)
Necdet Tunalı (Mechanical Engineer / Proje Isı Engineers)
Alişer Parlak (Electrical Engineer / İzmir Metropolitan Municipality)
Korhan Şişman (Interior Architect, Lighting Expert / Planlux)
Durmuş Ali Kasap (Architect / D.A. Architects)
Dilşad Kurtoğlu (Architect)
Ceyhun Baskın (Architect)
Rüya İpek Balaban (Architect)
Contractors:
Ladin İnşaat
Photograph Credits:
Yerçekim Architectural Photos
ZM Yasa Architectural Photography (Drone Photography)
Mert Uslu Architecture Archive
Studio Evren Başbuğ Architects Archive
Papilio * : Pavilion by the Sea
Within the scope of the 'İzmirDeniz' project, which has been ongoing since its conception in 2011, ‘Papilio’ was designed as the focal point of the Bostanlı Sea Square by Studio Evren Başbuğ. Situated across the Bostanlı market hall, this section of the coastal waterfront, which is 350 meters long and 21 acres in size, was given special interest within the scope of the 1.3 km long coastal planning of the second stage application area of the Karşıyaka coastline.
In order for the visitors to establish an unprecedented relationship with the sea in reference to the entire urban coastline of İzmir, the continuous coastal promenade proposed in the master plan was locally curled away from the shore, aiming to create a truly rural coastal experience. An artificial hill with a maximum height of 3.5 m was positioned on the buffer zone between the vehicle road and the promenade. Considered as a three-dimensional plastic element with ramps and terraces, the hill was designed to be both a visual and auditory barrier, a natural viewing amphitheater for the new focal point of the coastline, and a natural podium for the art object ‘thinking.’
The coastal band between the sea fortification created through a technique different from the rest of the shoreline using large natural rocks and the deviated promenade was covered with pebbles in order to create a natural beach experience for the user. The wooden platforms designed for temporary programs (open-air cinema, performance and show stage, etc.) are also envisaged to create a gradual transition between the promenade level and sea level. Oscillating between the urban and the rural, these natural wood covered cascading planes provide an infrastructure for occasional programmed recreational activities, as well as offering users the opportunity to lounge in a state of idleness at the seaside, isolated from the hustle and bustle of the city at other times.

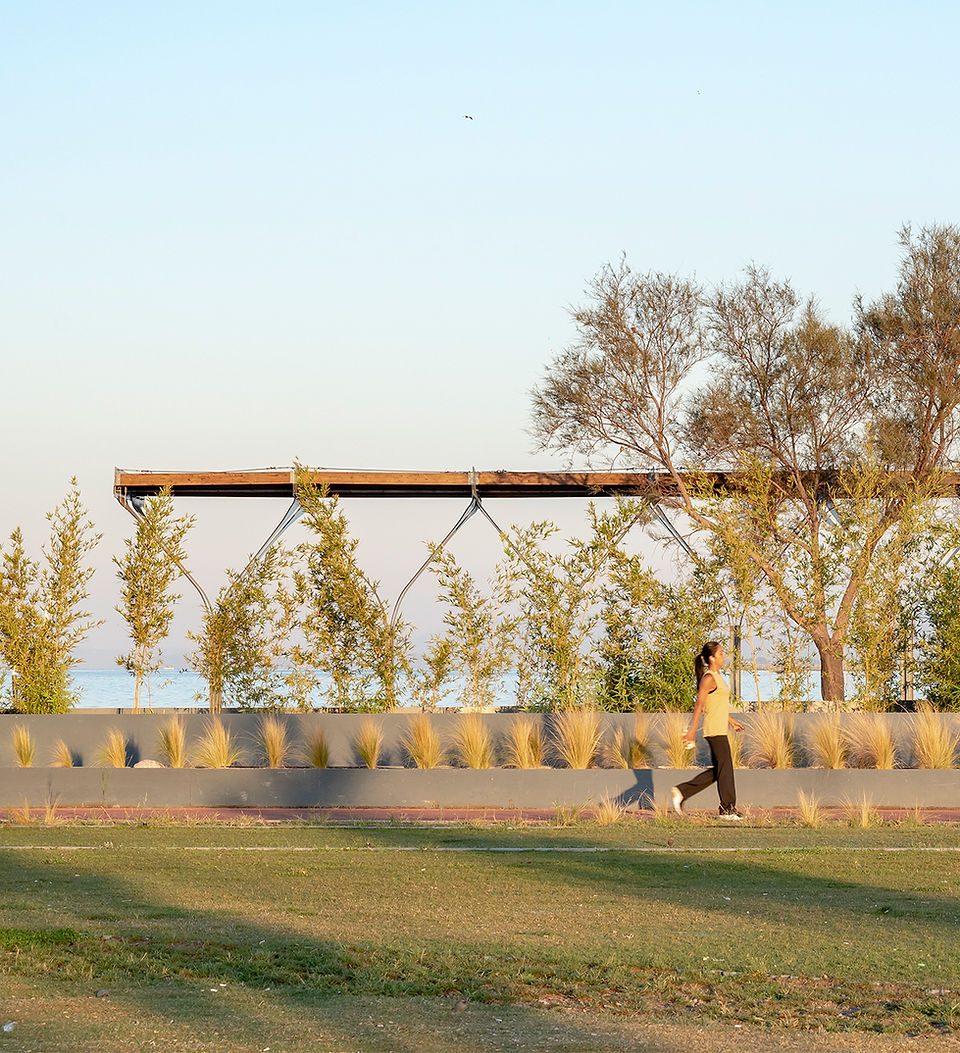

Papilio was designed as the foundational dominant architectural element at the center of the Bostanlı Sea Square. The structure, which is positioned between the dry pool at the upper level and the cascaded wooden platforms on the lower side, with an angle of 45 degrees to the shoreline, was created with the repetition of identical modules that are each made of steel sheets of 2 cm thickness and produced through computer-aided precision cutting, twisting, and welding processes. In addition to its basic shading function, this extraordinary architectural element creates a complementary visual backdrop for public uses on both sides with its lace-like appearance created by thin, delicate steel plate sections. While guiding the perception and movement towards the sea with its positioning, Papilio invites one on an inner journey along the middle axis framing the sea and the horizon, starting from the square and ending by literally touching the sea with concrete sea steps.
* Papilio is a species of butterfly classified in the family Papilionidae (swallowtail) and can be found in the Papilionini tribe. The word 'papilio' in Latin means 'butterfly.’ The butterflies belonging to the swallowtail family have thin tail like structures at their rear wing tips resembling the ones that the swallows have. The function of these tail-like structures are still yet unknown.
Awards & Nominations
Awards & Nominations as of March 2020:
- World Architecture Festival (WAF) Awards
Future Projects (Landscape) Category - Finalist (2017)
